SCPET-04 brake disc eddy current flaw detector
Product introduction

Performance
Detection channel
4 channels
Detection speed
2~3pieces/min
Frequency range
10Hz~10MHz
Gain 0~99dB,side size 0.1dB
Advanced filtering
Yes
High pass
0.1Hz~650Hz
Low pass
1Hz~10000Hz
Phase rotation
0-360° side size 1°
Calibration crack
5.0 mm x long, 0.01 mm x wide and 0.2 mm deep
Computer Full Digital Parameter Adjustment
Synchronized alarm output controlled by internal and external clock
High Precision End and End Signal Excision Function
High Precision Real-time and Delayed Alarm Output
Fast Digital/Analog Electronic Balance
Delayed Hidden Removal Function with Memory Trajectory

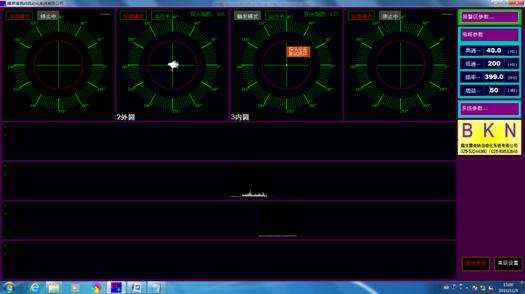

Real-time impedance plane display
The instrument can match any probe
Remote Automatic Help System
Man-machine interface in Chinese and English
Non-equal Amplitude Phase/Amplitude Alarm Domain
